basal body cartwheel

cellstructuremech:basal_body_cartwheel · Cytoskeleton · Multiprotein complex · Proposed

A proteinaceous hub-and-spoke assembly at the proximal region of a microbial ciliary basal body or pro-basal body. Its central hub bears nine radially arranged spokes that connect toward the surrounding microtubules; the hub and spokes extend longitudinally as a stacked scaffold. [DOI:10.15252/embj.2020106246]

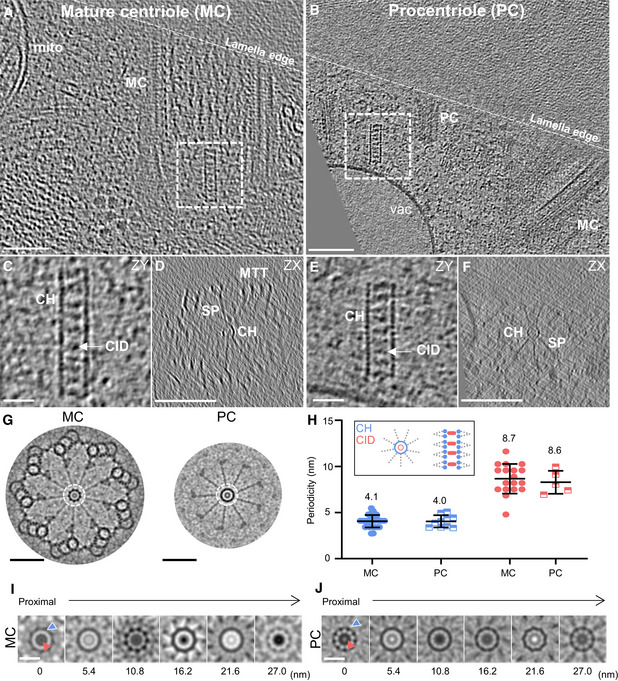

Native Chlamydomonas cartwheels in mature basal bodies and pro-basal bodies. A-B show in-situ tomographic context; C-F show longitudinal and transverse views of the hub, inner densities and spokes. G shows symmetrized cross sections, H compares measured axial spacings, and I-J show serial symmetrized hub projections. Scale bars in A-B are 100 nm. CRYO_ET · *Chlamydomonas reinhardtii* (`NCBITaxon:3055`) · Nikolai Klena, Maeva Le Guennec, Anne‐Marie Tassin, Hugo van den Hoek, Philipp S Erdmann, Miroslava Schaffer, Stefan Geimer, Gabriel Aeschlimann, Lubomir Kovacik, Yashar Sadian, et al.; CC BY, via PubMed Central · CC_BY_4_0 · source: PMC PMC7667884.1 embj2020106246-fig-0001 · `DOI:10.15252/embj.2020106246`

Synonyms: centriole cartwheel

Part of: ciliary basal body (GO:0036064); GO:0120280 — ciliary pro-basal body (no local record)

UniProt location names: UniProt Consortium, CC BY 4.0. Reference label and route sources.

Components

Component	Type	Part of / acts on	Grounding	Genes	Stoichiometry	Essential	Role
SAS-6	Protein	part of	Reviewed label only (reviewed name; no accession asserted)	SAS6, BLD12, CrSAS-6		UNKNOWN	Structural constituent of the central hub and radial spokes. Recombinant Chlamydomonas SAS-6 forms ring-based assemblies, but this does not establish complete native composition or a fixed copy number per cartwheel. `DOI:10.1038/ncomms14813` Native localization and in-vitro reconstitution with full-length CrSAS-6 and a Bld10 C-terminal fragment support cartwheel membership. The truncated SAS-6 assembly assay is not a census of native subunits.
Bld10/Cep135	Protein	part of	Reviewed label only (reviewed name; no accession asserted)	BLD10, CEP135		UNKNOWN	Cartwheel-associated structural protein localized to radial fibers in Chlamydomonas. Its C-terminal fragment supports organized core-cartwheel reconstitution with full-length SAS-6; this does not assign the complete protein to a single density or establish universal cartwheel essentiality. `DOI:10.1083/jcb.200402022` Immunogold localization places Bld10 on cartwheel radial fibers in basal bodies and pro-basal bodies. The null mutant lacks recognizable basal bodies, so its phenotype is not a cartwheel-specific loss assay. `DOI:10.1038/ncomms14813` Full-length SAS-6 together with Bld10 residues 1061-1641 produces organized hub-and-spoke arrays in vitro. Fragment sufficiency does not establish the full native cartwheel proteome.

Organism-specific protein examples

Named proteins in which each component's role was established, with the organism the evidence comes from. The component above is the taxon-agnostic family; these are the specific entries behind it.

SAS-6

Accession	Protein	Gene	Organism	Entry
`UniProtKB:A9CQL4`	Centriole protein	CrSAS-6	Chlamydomonas reinhardtii (`NCBITaxon:3055`)	UNREVIEWED
Role and evidence (2 references) Chlamydomonas SAS-6; the native UniProt entry retains its submitted name and CrSAS-6 gene symbol. This is a TrEMBL entry, not reviewed Swiss-Prot. `UniProtKB:A9CQL4` Native JSON confirms accession, organism, gene symbol and entry status; its sequence reference is the original Chlamydomonas SAS-6 study. `DOI:10.1038/ncomms14813`

Bld10/Cep135

Accession	Protein	Gene	Organism	Entry
`UniProtKB:A8ID55`	Basal body protein 10	BLD10	Chlamydomonas reinhardtii (`NCBITaxon:3055`)	REVIEWED
Role and evidence (2 references) `UniProtKB:A8ID55` Native UniProt JSON verifies the accession, recommended name, BLD10 gene symbol, taxon and Swiss-Prot status. `DOI:10.1083/jcb.200402022`

Canonical examples

NCBITaxon:3055 Chlamydomonas reinhardtii — In-situ cryo-FIB/cryo-ET of mat3-4 cells resolves cartwheels in mature basal bodies and pro-basal bodies. This is a native cellular sample, not a recombinant cartwheel reconstitution. [DOI:10.15252/embj.2020106246]
NCBITaxon:5888 Paramecium tetraurelia — Cartwheels characterized by cryo-ET and subtomogram averaging of isolated cortical units from d4-2 and delta-CenBP1 strains. The example does not assert identical cartwheel length or spoke-fusion geometry across species. [DOI:10.15252/embj.2020106246]
NCBITaxon:5762 Naegleria gruberi — Isolated basal bodies from NEG cells differentiated into flagellates. Cartwheel periodicities were measured in undamaged regions because specimen preparation often compressed the basal bodies; this is not an assertion that amoeboid cells retain a cartwheel. [DOI:10.15252/embj.2020106246]

Functions

ciliary basal body organization GO:0032053 — Provides a central radial scaffold linking the hub toward the surrounding microtubules in the proximal basal-body region. This structural role does not imply that the cartwheel alone determines microtubule number or that its absence abolishes every form of basal-body assembly.
- DOI:10.15252/embj.2020106246 Native reconstructions resolve the hub, spokes and peripheral connections. Static architecture does not establish a growth time course.
- DOI:10.1038/ncomms14813

Physical properties

DIAMETER: 22.4 +/- 1.3 UO:0000018 (Central-hub diameter in isolated Chlamydomonas reinhardtii pro-basal bodies, Figure 1 of Guichard et al. 2017; reported value and error, n=10 measurements from five tomograms. The caption does not specify the error statistic. This is not the full spoke-to-spoke cartwheel diameter.) [DOI:10.1038/ncomms14813]
OTHER: 4.1 +/- 0.67 UO:0000018 (Axial central-hub density spacing in mature Chlamydomonas reinhardtii basal bodies imaged in situ in Klena et al. 2020, Figure 1; mean and SD, n=30 distances. Not a universal ring-pair repeat or whole cartwheel length.) [DOI:10.15252/embj.2020106246]
OTHER: 8.7 +/- 1.6 UO:0000018 (Axial spacing of cartwheel inner densities in the mature Chlamydomonas reinhardtii in-situ sample, Figure 1; mean and SD, n=18 distances. Inner-density occupancy is not uniform throughout every cartwheel.) [DOI:10.15252/embj.2020106246]

Discussions

CURATION_TODO (RESOLVED): Distinguish a cartwheel record from its basal-body parent and neighbors. A named hub-and-spoke subassembly is not a single protein or an entire basal body.
CURATION_TODO (OPEN): Find exact taxon-agnostic groundings for SAS-6 and Bld10/Cep135. Domain matches and a broader paralog family are not whole-family equivalents.
CURATION_TODO (RESOLVED): Keep reconstruction periodicities and reconstitution models scoped. Native ring organization, artificial arrays and model fits are different kinds of evidence.
CURATION_TODO (OPEN): Assess the full 2026 Trichonympha cartwheel study before adding its molecular model or deposits. Metadata and an abstract do not support an audited native model.
CURATION_TODO (RESOLVED): Do not label neighboring triplet deposits as cartwheel maps. Sharing a publication does not establish structural equivalence.

Evidence

DOI:10.15252/embj.2020106246 Klena et al. 2020, PMID:32954513. Checksum-verified PMC7667884.1 JATS Results, Discussion, cartwheel Methods and figure captions inspected; Figure 1 visually inspected. Native architecture and taxon-specific measurements are distinguished from proposed molecular assignments.
DOI:10.1038/ncomms14813 Guichard et al. 2017, PMID:28332496. Checksum-verified PMC5376648.1 Results, Discussion and Methods inspected. Native core-cartwheel morphology and recombinant sufficiency experiments have different scopes.
DOI:10.1083/jcb.200402022 Matsuura et al. 2004, PMID:15173189. Checksum-verified PMC2172387.1 Results, including localization, immuno-EM and mutant/rescue experiments, inspected. No media from this noncommercial-licensed article are hosted.

Curation history

2026-10-04T12:59:58Z codex · CREATED_RECORD — Scaffolded by scripts/new_record.py
2026-10-04T13:02:54Z codex · CURATED_RECORD — Added source-scoped cartwheel identity, constituents and protein examples, three microbial examples, native measurements and an inspected CC BY 4.0 figure. Documented grounding, model and deposition boundaries and the unread 2026 full-text follow-up.
